Solivagant Specs


Mercedes-Benz 3500 Sprinter 170 - SLEEPS 2-3 | RIDES 2-4

The Solivagant is great for two soulmate wanderers with an affinity for adventure. It’s easy to maneuver in urban traffic to exploring remote locations where cell service is questionable and plug-in power is non-existent. Stay cool in air conditioning in the summer and warm in the winter with thermostatically controlled heat. Enjoy the fully enclosed, private bathroom with hot shower and a galley kitchen with refrigerator, microwave, induction cooktop, and filtered water.

The Differentiators of Team Adventure USA

Structural Aluminum

The strong durable aluminum is exclusively used for all structural components throughout the vans. Tig welded for strength and powder coated for increased durability for years of maintenance free use.

Bed Systems

Three different Bed Systems available to configurate your space to meet your specific needs. Options can include vertical adjustable, storage below, folding out of the way, and dedicated. All with specific attention to comfort and durability for all night comfort.

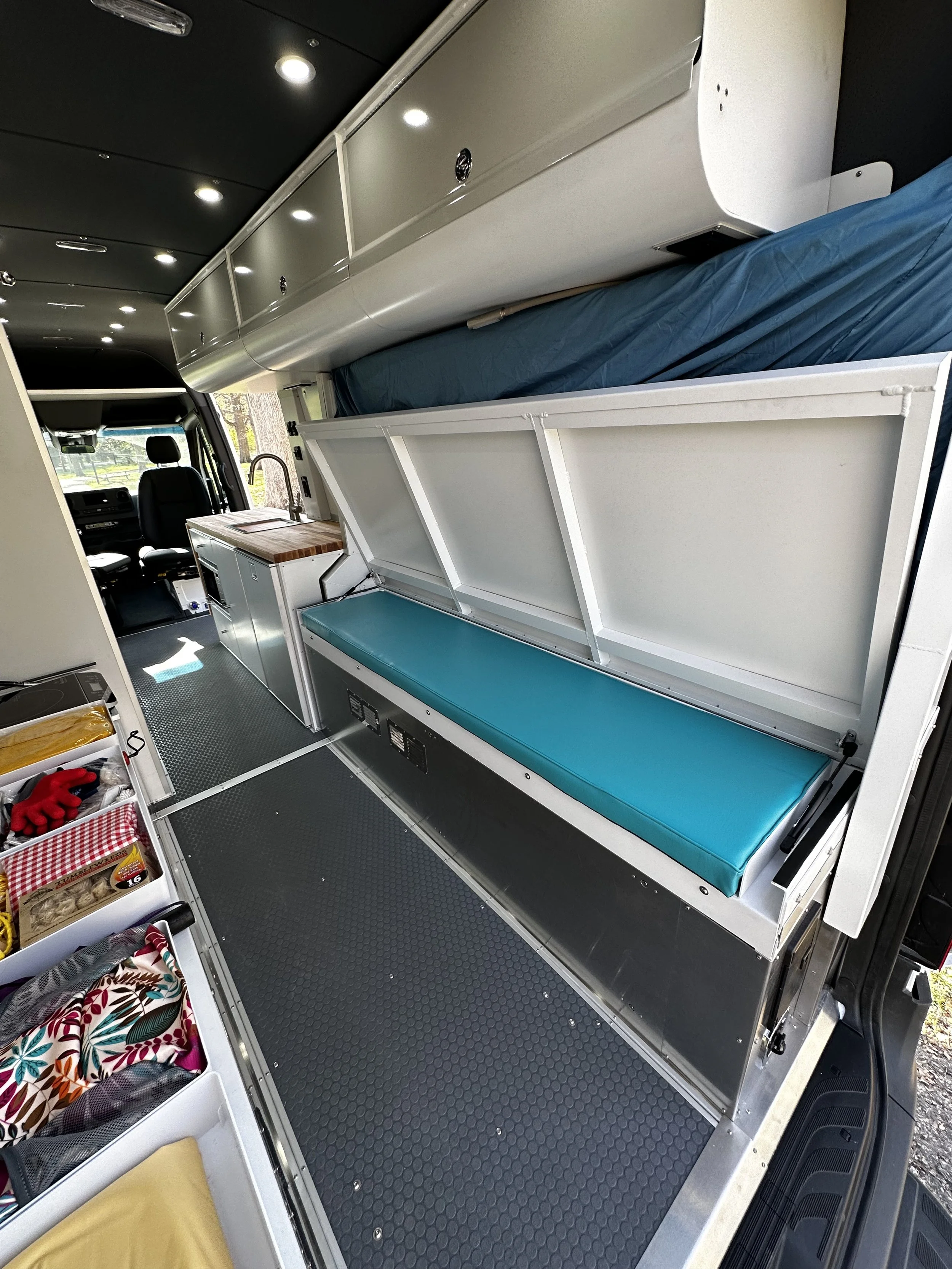

Murphy bed system

The ultimate adventure set up with no compromises to bed comfort. The Murphy bed system can fold up to store large items, utilize a bench underneath, easy access to the upper cabinets and have storage underneath to maximize the space.


Vertical Adjustable Bed System

Looking for the most flexibility in terms of storage. Our Vertical Adjustable Bed system can be height adjusted on one or both sides to make room to store any large objects while the modularity can be changed to a desk or a lounge chair.


Platform Bed System

A folding mattress provides the maximum size bed and comfort in a sprinter van. Back adjustable from flat to vertical to provide comfortable seating and sleeping. Configurable garage storage underneath increases storage capability

Built to Last

  • TIG Welded Aluminum Structures

  • Structures Bolted to walls

  • Only 8 Small holes in Factory Roof

  • Marine grade wiring

  • High end Components

  • Complete Operators & Maintenance Manual Included

Solivagant Highlights

Solivagant full specifications

  • x Engine 3.0L V6 Turbocharged diesel / 2.0L I4 Twin Turbocharged diesel

    x 170 wheel

    x Exterior length 282” with rear racks

    x Exterior height 120” roof rack

    x Exterior width 92.5” with mirrors

    x Interior Dimensions 72” height, 65.5” width and 22” galley aisle

    x High Roof

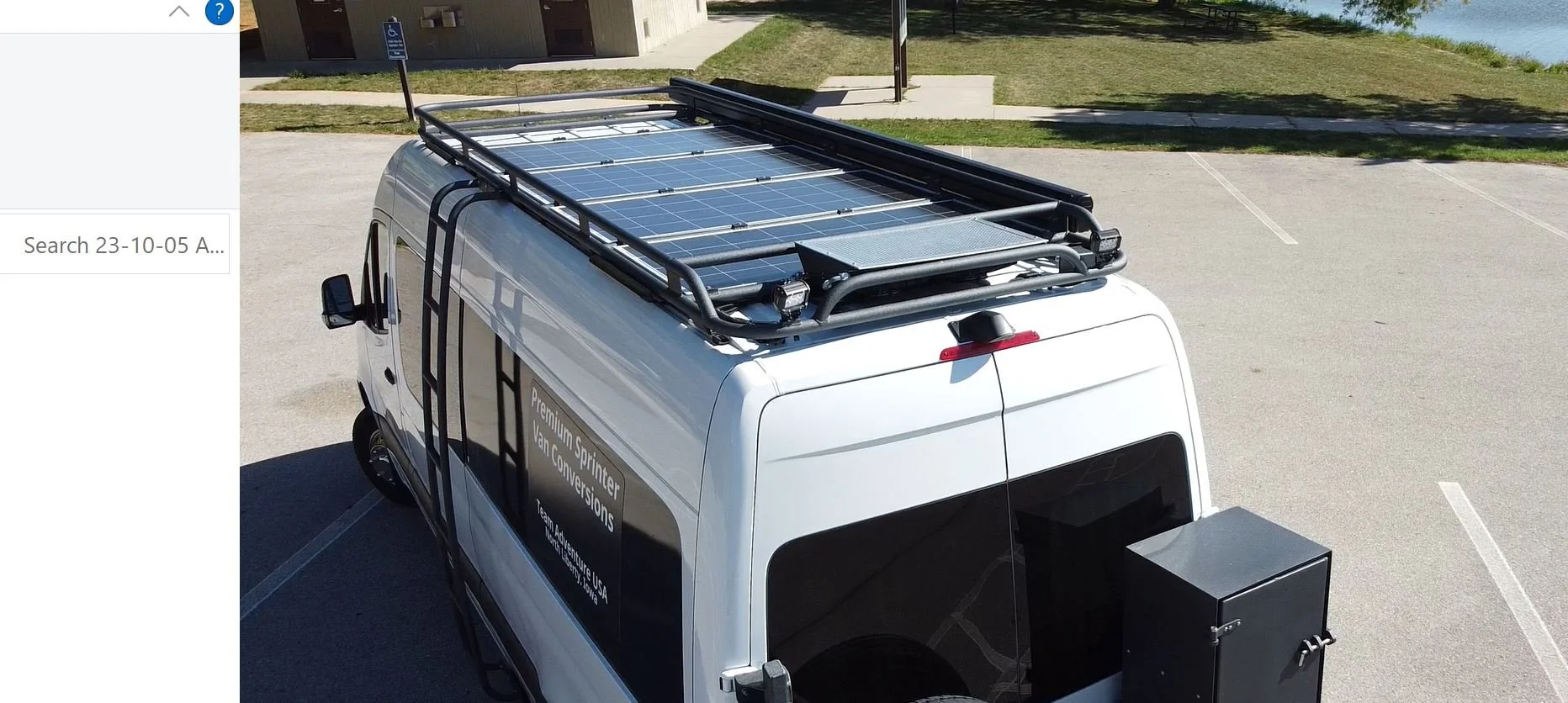

    x Roof rack with solar panels

    x Hitch with wiring harness

    x Fuel tank capacity 24.5 gallons

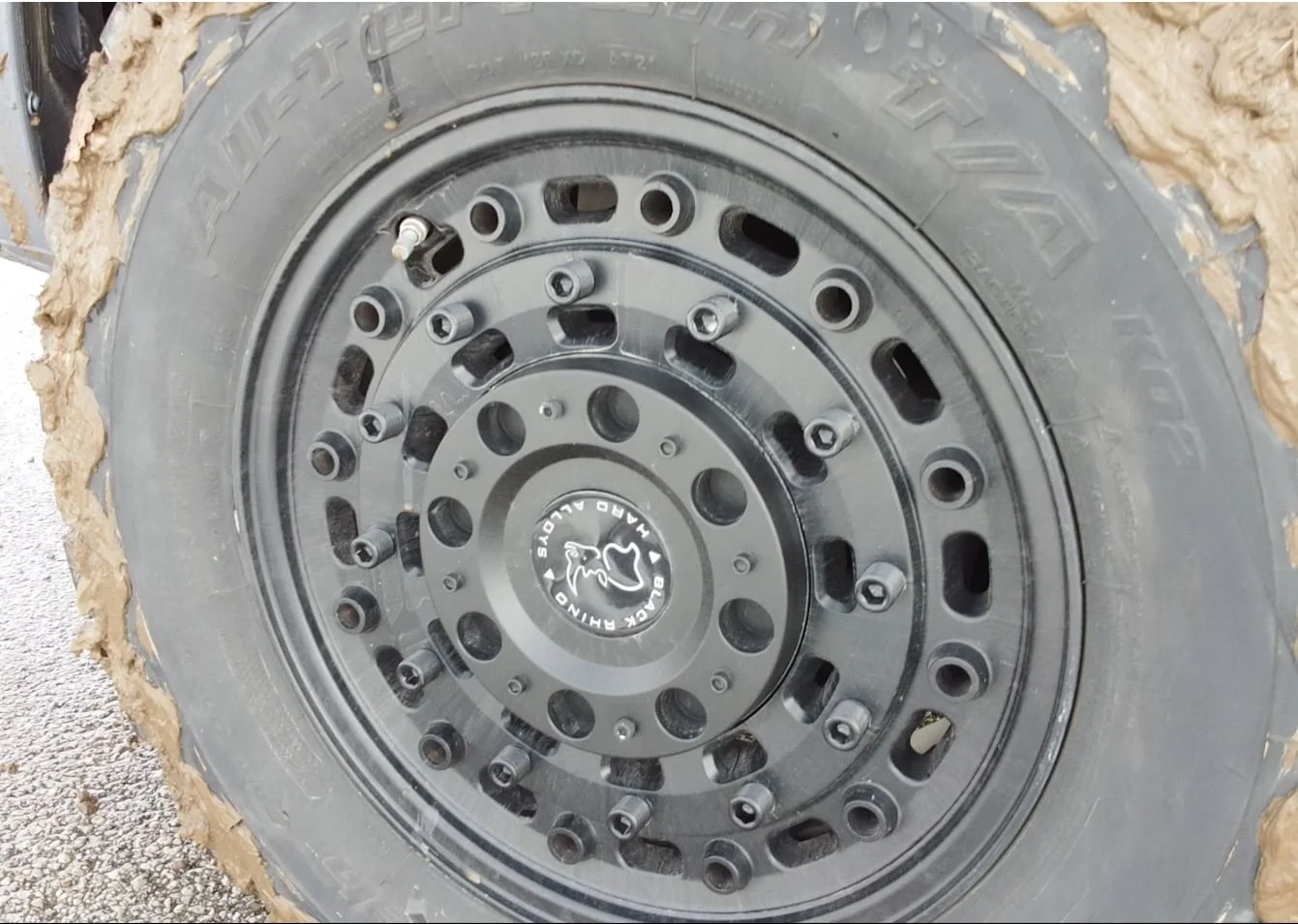

    x Tires and wheels - factory Mercedes wheels & tires or BFG All Terrains on Black Rhino wheels

    x Mercedes warranty 1-yr./20,000 mi. maintenance interval, 3-yr./36,000 mi. new vehicle , 5-yr./100,000 mi. Federal Diesel , Emissions 5-yr./100,000 mi. powertrain limited

  • x Battle Born LiFePO4 Batteries 6 batteries, ea. 100 AH

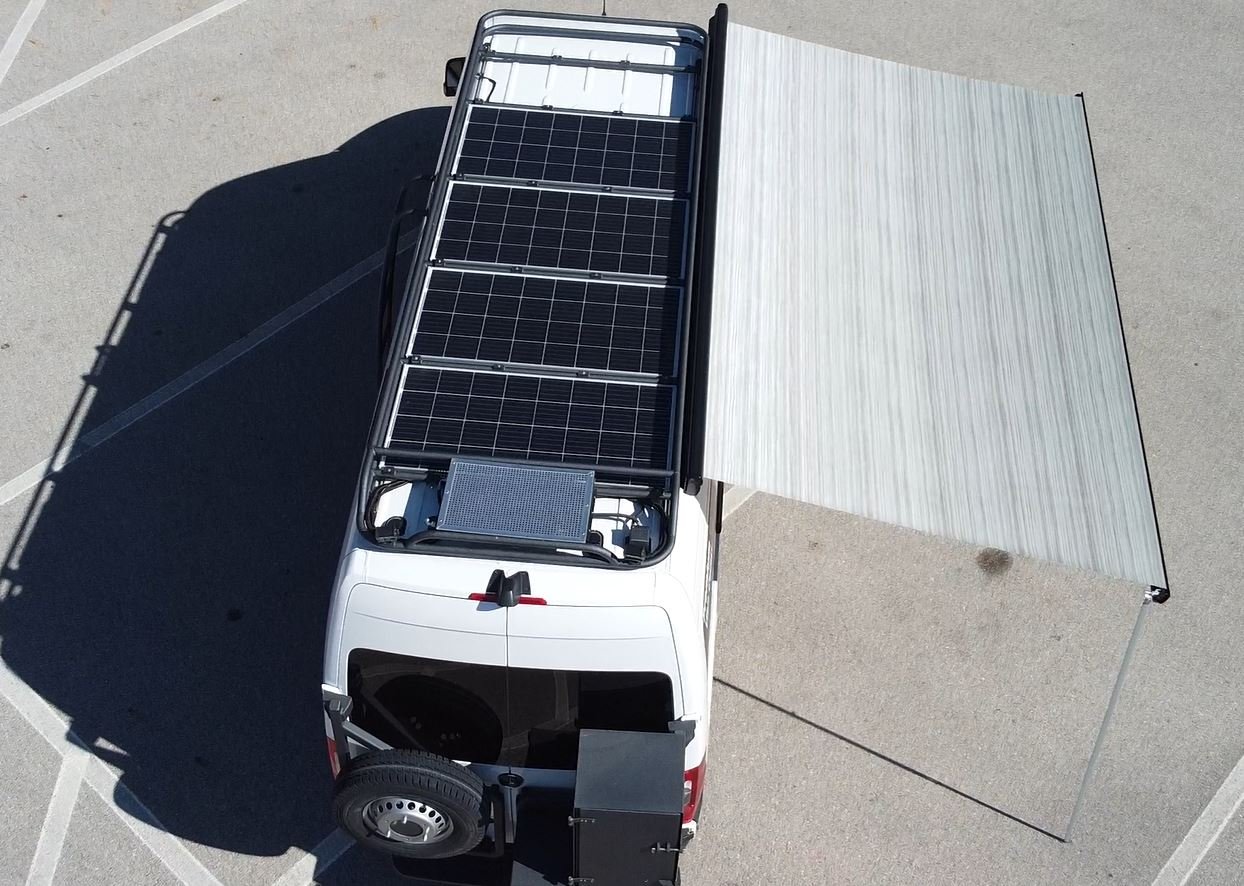

    x Renogy Solar Panels Four panels ea. 175 watts (total 700)

    x Second Alternator 370 amp

    x Victron Invertor 3,000-watt inverter

    x Blue Sea Fuse Block 12V marine grade fuse block

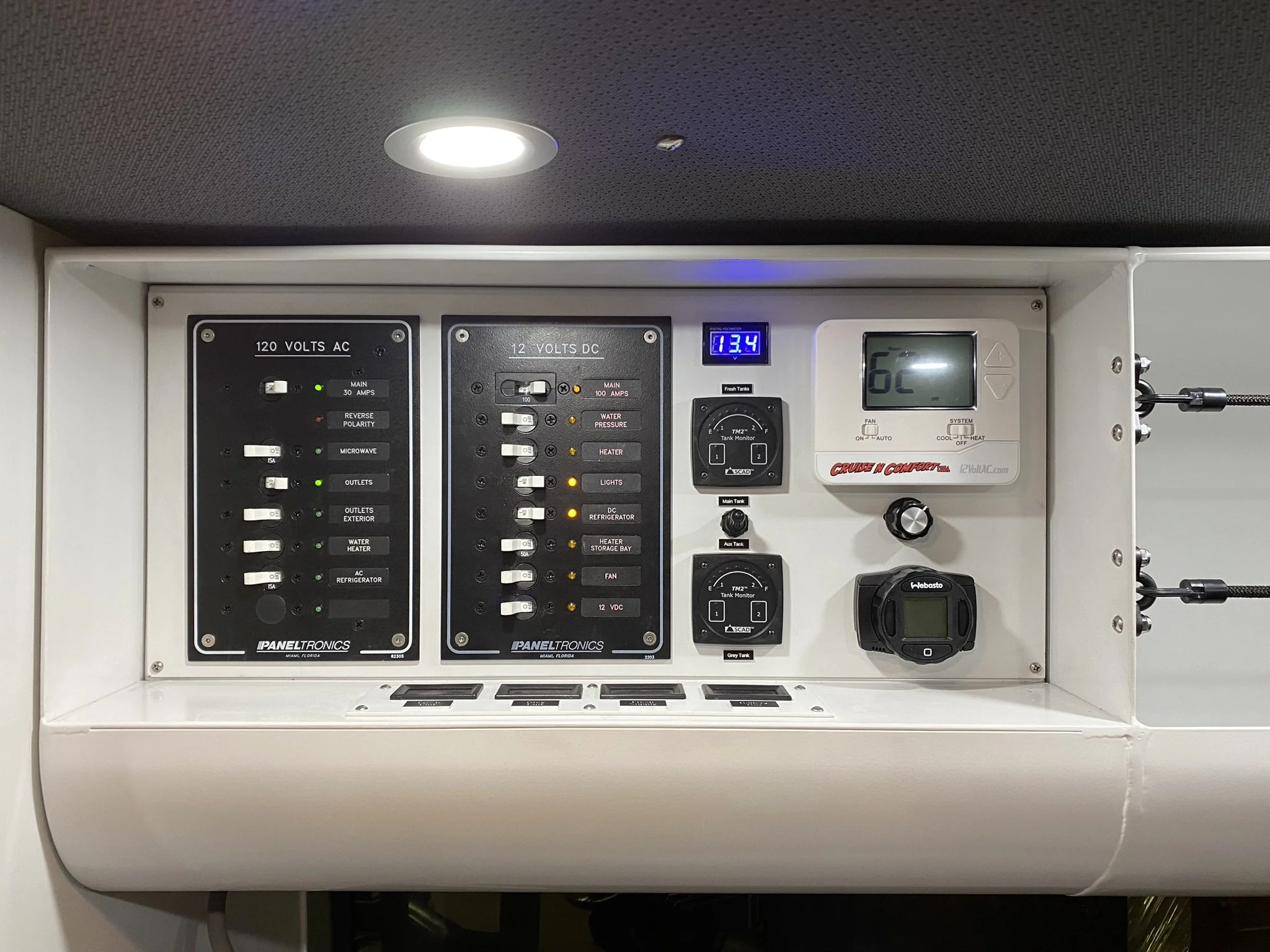

    x Electrical Control Panel 30 amp AC panel

    x LED Lighting 12 VDC Interior: 8 ceiling, 2 reading lights

    x Interior Outlets Six 110 outlets; Four with USB ports

  • x Cruise & Comfort Air Conditioner 9,500 BTU with aux blower

    x Directional vents

    x AC operates directly from batteries

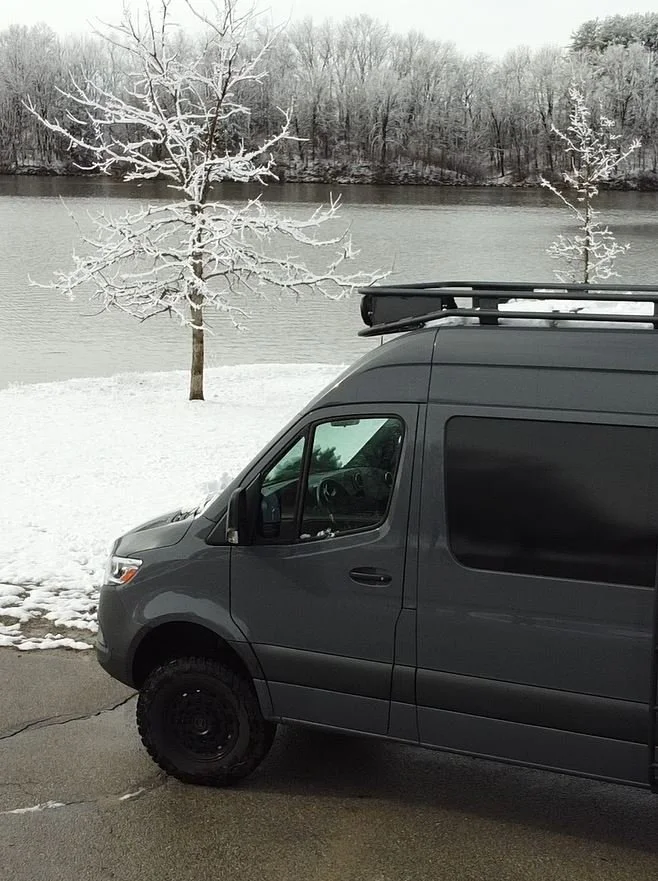

    x Webasto EVO 40 Diesel Heater 4 kW heating power

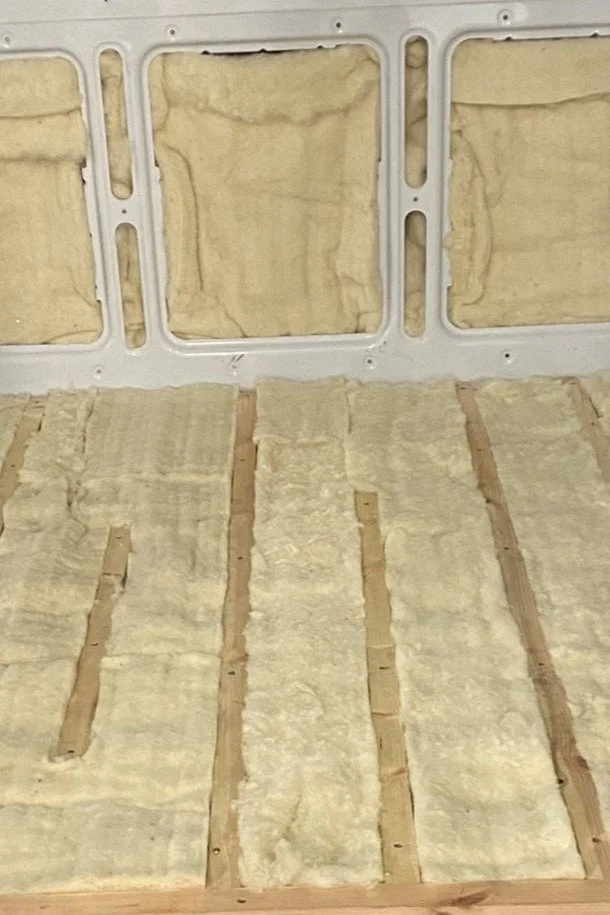

    x Havelock Wool Insulation in the Floor, ceiling, and walls

    x Sound Deadening in the Floor, ceiling, and walls

    x Ventilation Discharges externally under van

    x Window Covers Insulated and magnetic

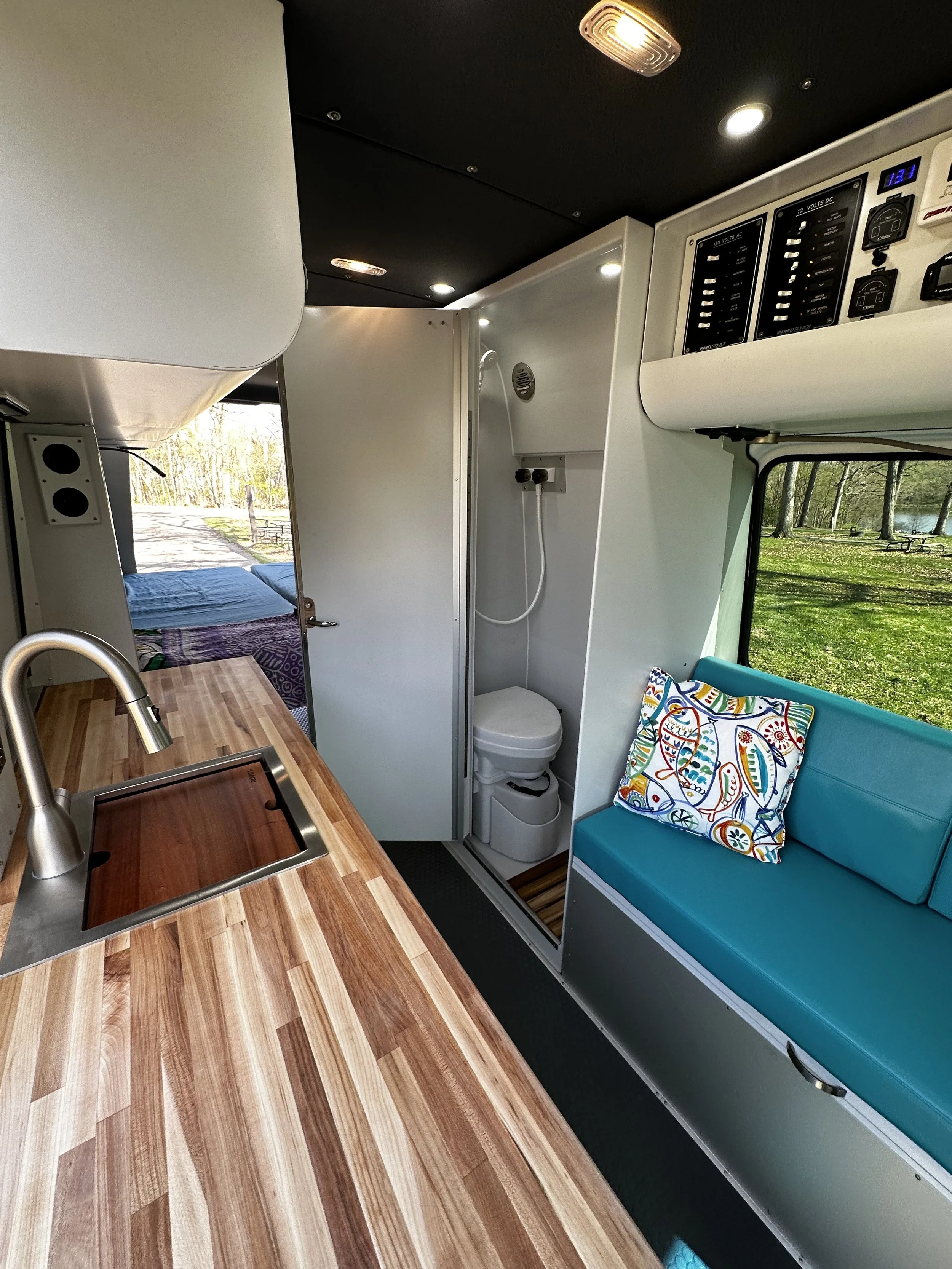

  • X Bathroom 72”H x 22” W x 39” D inside dims Fully enclosed with toilet and shower

    X Composting Toilet Separates solids from liquid 2 gal. liquid capacity

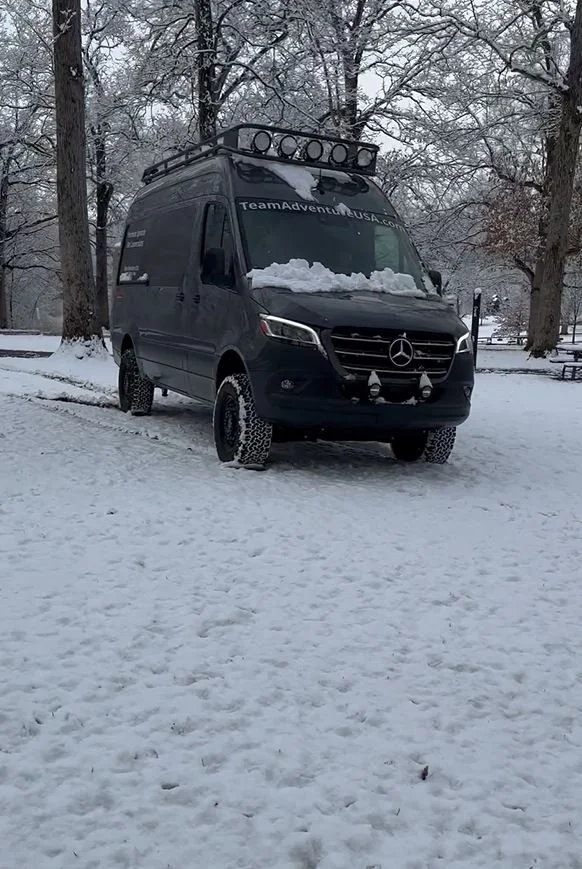

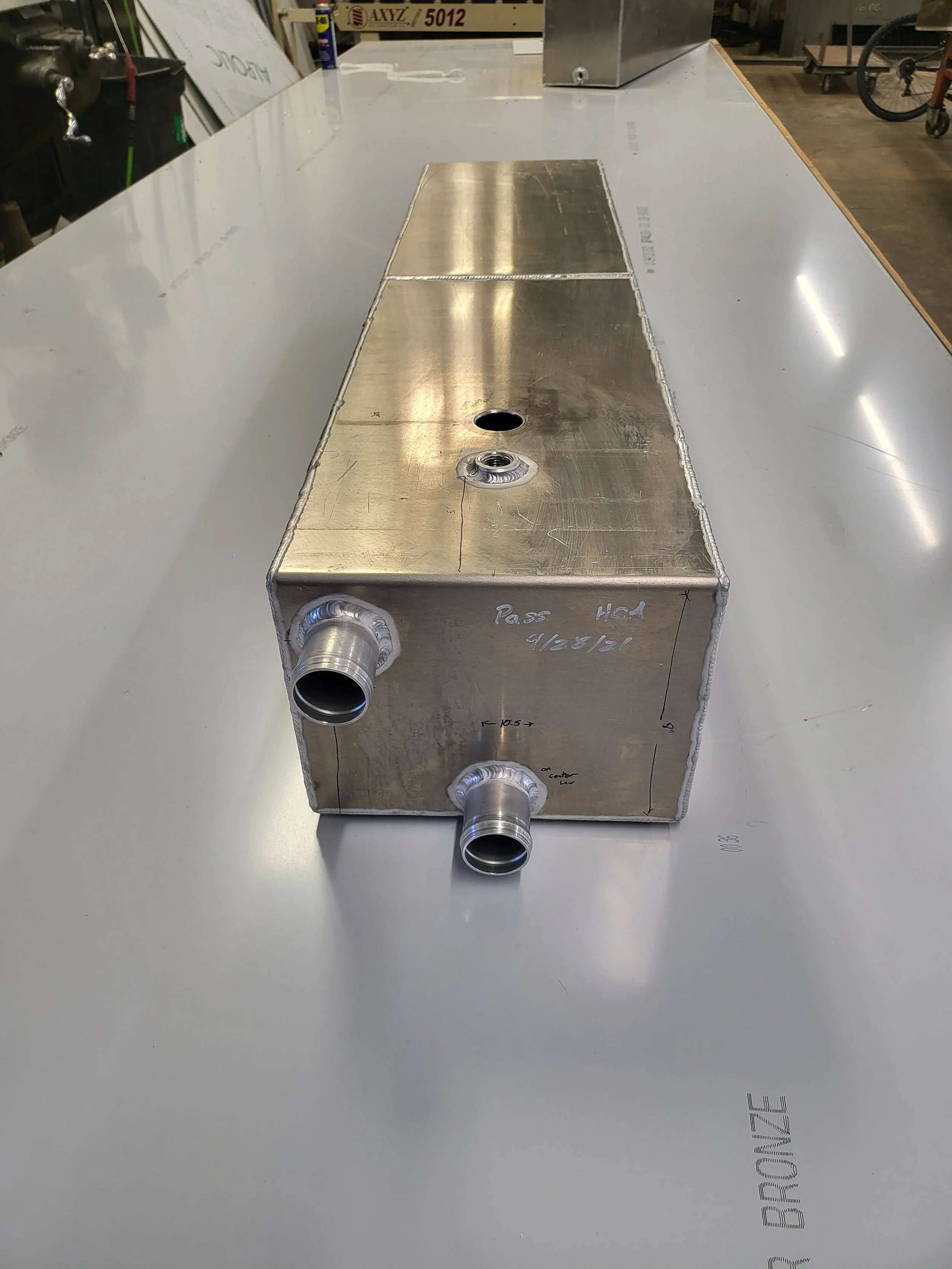

    X Fresh Water Tank 24.5 gal. aluminum w/ cold weather kit - Easy fill from under hood

    X Gray Water Tank 15 gal. aluminum with cold weather kit, Internal discharge lever

    X Water Heater (110 AC) 4 gal. hot water tank

    X Water Pump Marine grade pump with accumulator

    X Filtered Water Sink filtered, replace filters 6-8 mo.

    X Fresh and Gray tank level monitors

  • X Isotherm Refrigerator/Freezer 83L refrigerator capacity, 32L freezer capacity

    X Cooktop 1800W portable induction cooktop

    X Microwave Built-in combination microwave/ convection oven

    X Stainless Steel Sink 15” x 15” x 9” with Filtered faucet and solid cutting board cover

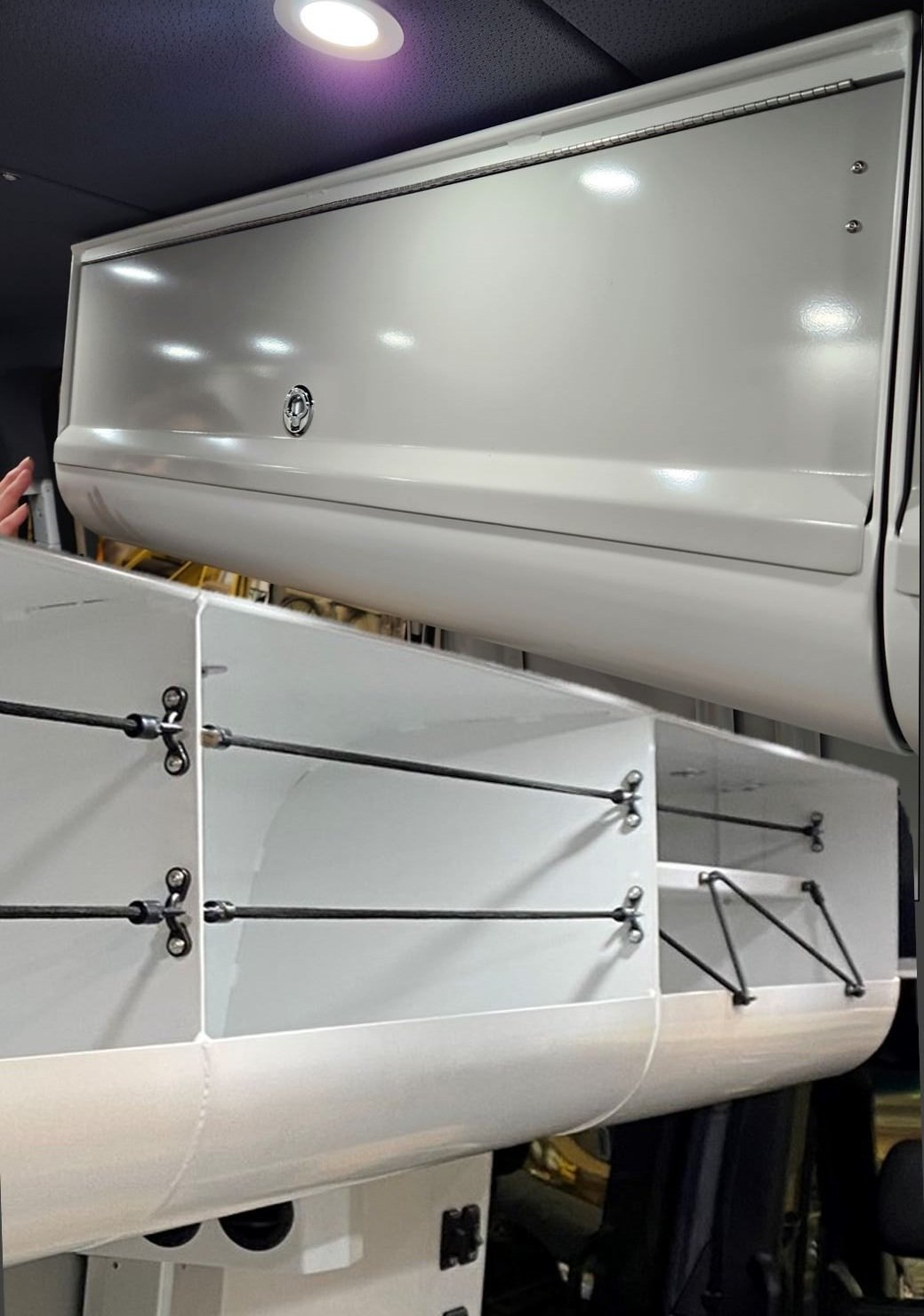

    X Cabinets 1/8” alum ; powder coated

    X Upholstered Wall Covering Canvas waterproof fabric

    X Flooring Coin flooring – Fiberglass

    X Memory Foam Mattress two at 5” x 74.5” x 34.5”

  • X Garage Space Depends on bed system

    X Rear Door Water Outlet Shower head with 15 ft expandable hose; hot and cold water

  • X Awning 13 ft long, 8 ft wide extension

    X Aluminum Spare Tire Rack Rear door left side mount

    X Aluminum Utility Rack Rear door right side mount

    X Aluminum Side Ladder Access to roof

  • No Blackwater Tank to Dump or Clean

  • No Need to Use Public Porta-Potty

  • No Electrical Hook-Up Required

  • No RV Campgrounds Required
