Roof Platform
Roof Platform
With solar panels and a satellite antenna on the roof having a platform to sit on is not straight forward. Team Adventure USA built a hinged platform to store out of the way when not in use. The platform is spring assisted and locks in the stowed position when not in use.
144 4x4 Motorcycle Hauler

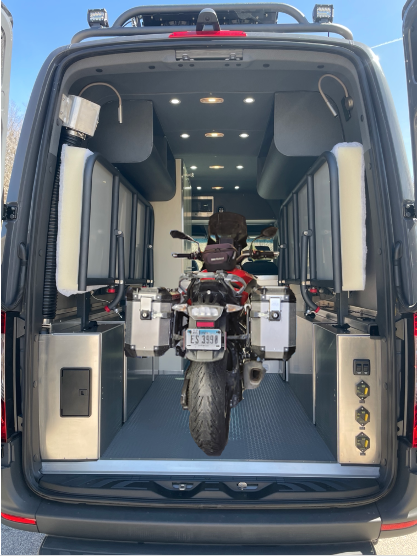

Bike Hauler
With our fold-up/adjustable bed system we can configurate our Intrepid model to be a bike hauler also. The bathroom/shower and sink switch places and the fridge/counter is rotated and the van is set. An electric bike lift system is used and a bike can be loaded and unloaded in 60 seconds by simply pushing a button. When not in use, the lift has an aluminum tread plate surface to be used as a floor in the van. We can also to the same in our 170 Salivagant.
Aluminum Bike Rack
Aluminum Bike Rack Attachment
We have completed our bike rack system which accommodates 1 or 2 bikes! The complete aluminum structure is TIG welded and will be powder coated for production. The racks are fully adjustable for road bikes, mountain bikes, and E-bikes. The bike racks mount using the same mounting points as our external storage box.
Aluminum Storage Box
Large Exterior Box
Dimensions:
Top section: (with shelf installed): 19” x 31”
Bottom section: 18” x 31”
Max vertical storage (with shelf removed): 19” x 49”
Weight limit: 150 lb
Aluminum Water Tanks
Aluminum water tank
For maximum capacity and minimum ground clearance reduction - Team Adventure USA designed and manufactures our own water tanks. Tanks are fabricated with .125 aluminum and TIG welded for strength. Fresh water 24.5 gallons💦Grey 15 gallons. Final configuration includes level sensor, heating pad, insulation, and breather. These are also fabricated and available for purchase from @hancofab
Aluminum Bike Rack Attachment
Aluminum Bike Rack Attachment
We have completed our bike rack system which accommodates 1 or 2 bikes! The complete aluminum structure is TIG welded and will be powder coated for production. The racks are fully adjustable for road bikes, mountain bikes, and E-bikes. The bike racks mount using the same mounting points as our external storage box.
